US Type Drop Forged Wire Rope Clips

US type drop forged wire rope clips, also known as Crosby wire rope clips, are fittings used to secure the ends of wire ropes or cables. These clips are commonly used in rigging and lifting applications to create a loop or an eye in the wire rope.
These wire rope clips consist of a u-bolt, a saddle, and two nuts. The u-bolt is placed around the wire rope, and the saddle is positioned on top of the rope between the two parts of the u-bolt. The nuts are then tightened to secure the wire rope in place.

+86-18057423992 tianye@tywebbing.com
Get a quote
PREV：Galv. Malleable Wire Rope Clip Type A
NEXT：Galv. Malleable Wire Rope Clip DIN1142

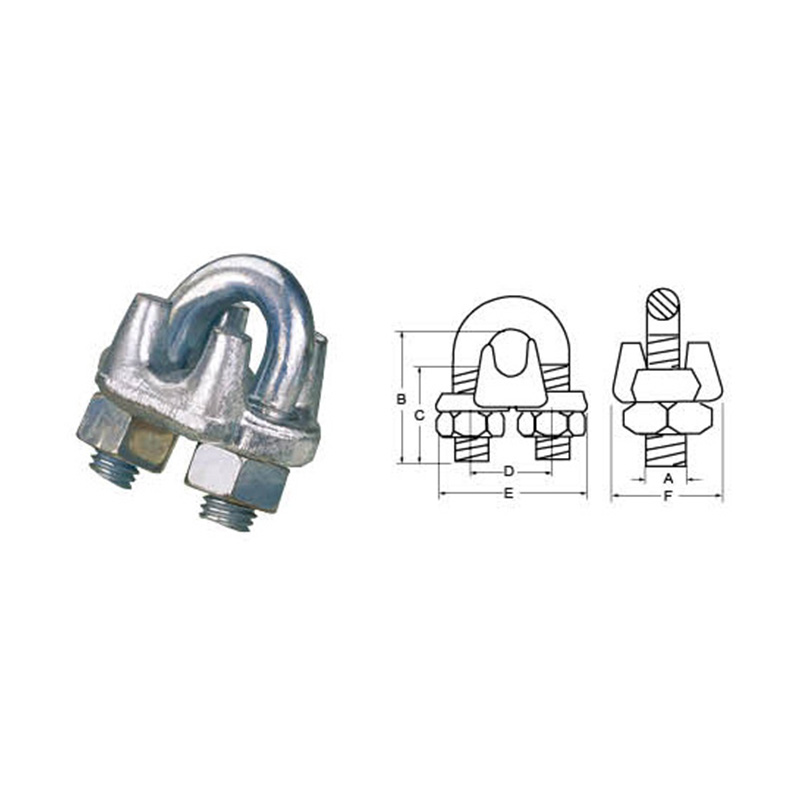

  • Item No. Size A B C D E F
    in in in in in in in
    TY025251 1/8 7/32 0.72 0.44 0.47 0.94 0.81
    TY025252 3/16. 1/4 0.97 0.56 0.59 1.16 0.94
    TY025253 1/4 5/16  1.03 0.63 0.75 1.44 1.19
    TY025254 5/16 3/8 1.38 0.75 0.88 1.69 1.31
    TY025255 3/8 7/16 1.5 0.75 1 1.94 1.63
    TY025256 7/16 1/2 1.88 1 1.19 2.28 1.81
    TY025257 1/2 1/2 1.88 1 1.19 2.28 1.91
    TY025258 9/16 9/16 2.25 1.25 1.31 2.5 2.06
    TY025259 5/8 9/16 2.38 1.25 1.31 2.5 2.06
    TY025260 3/4 5/8 2.75 1.44 1.5 2.84 2.25
    TY025261 7/8 3/4 3.13 1.63 1.75 3.16 2.44
    TY025262 1 3/4 3.5 1.81 1.88 3.47 2.63
    TY025263 1-1/8 3/4 3.88 2 2 3.59 2.81
    TY025264 1-1/4 7/8 4.25 2.13 2.31 4.13 3.13
    TY025265 1-1/8 7/8 4.63 2.31 2.38 4.19 3.13
    TY025266 1-1/2 7/8 4.94 2.38 2.59 4.44 3.41
    TY025267 1-5/8 1 5.31 2.63 2.75 4.75 3.63
    TY025268 1-3/4 1-1/8 5.75 2.75 3.06 5.28 3.81
    TY025269 2 1-1/4 6.44 3 3.38 5.88 4.44
    TY025270 2-1/4 1-1/4 7.13 3.19 3.38 6.38 4.56
