US Type High Tensile Forged Shackle G2130 Wholesale

Home / Product / Rigging Hardware / US Type High Tensile Forged Shackle G2130

Product category

Get in touch

  • US Type High Tensile Forged Shackle G2130
  • US Type High Tensile Forged Shackle G2130

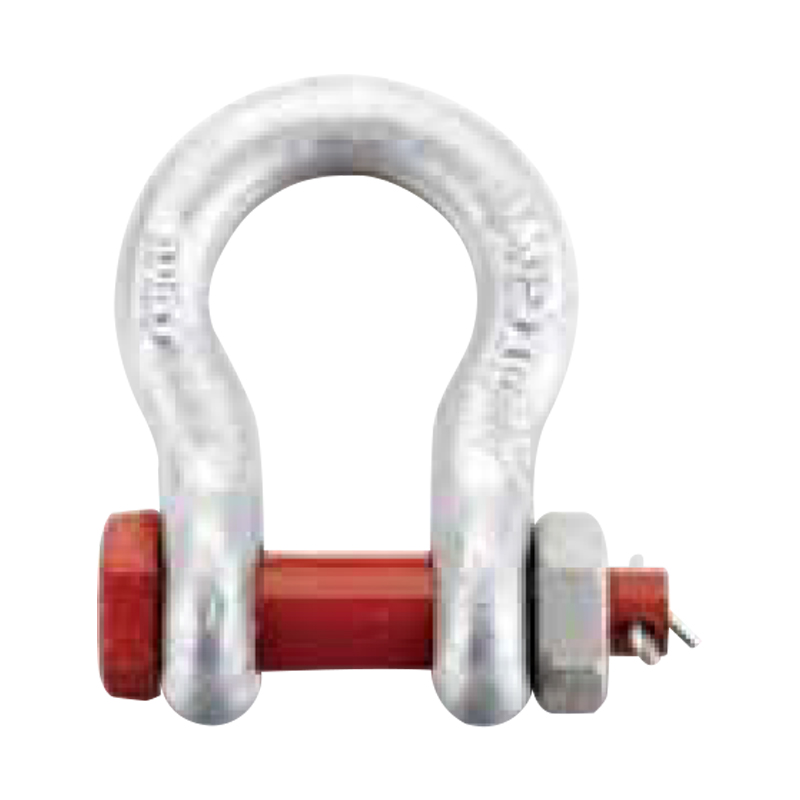

US Type High Tensile Forged Shackle G2130

Bolt type Anchor Shackles with thin head bolt-nut with cotter pin.
Meets the requirements of Federal Specification RR-C-271 Type IVA. Grade A. Class 3.
Finish: Hot Dipped Galvanized.

+86-18057423992 tianye@tywebbing.com
Get a quote
PREV：No previous article
NEXT：TY024552

  • Item No. Nominal Size Working Load Limit Dimensions (mm) N.W.
    each
    in tons A B C D E F G H I kg
    TY025041 3/16 1/3 9.65 6.35 22.4 4.85 15.2 14.2 37.2 24.9 4.85 0.03
    TY025042 1/4 1/2 11.9 7.85 28.7 6.35 19.8 15.5 46.7 32.5 6.35 0.05
    TY025043 5/16 3/4 13.5 9.65 31 7.85 21.3 19.1 53 37.3 7.85 0.1
    TY025044 3/8 1 16.8 11.2 36.6 9.65 26.2 23.1 63 45.2 9.65 0.15
    TY025045 7/16 1-1/2 19.1 12.7 42.9 11.2 29.5 26.9 74 51.5 11.2 0.22
    TY025046 1/2 2 20.6 16 47.8 12.7 33.3 30.2 83.5 58.5 12.7 0.36
    TY025047 5/8 3-1/4 26.9 19.1 60.5 16 42.9 38.1 106 74.5 17.5 0.76
    TY025048 3/4 4-3/4 31.8 22.4 71.5 19.1 51 46 126 89 20.6 1.23
    TY025049 7/8 6-1/2 36.6 25.4 84 22.4 58 53 148 102 24.6 1.79
    TY025050 1 8-1/2 42.9 28.7 95.5 25.4 68.5 60.5 167 119 26.9 2.57
    TY025051 1-1/8 9-1/2 46 31.8 108 28.7 74 68.5 190 131 31.8 3.75
    TY025052 1-1/4 12 51.5 35.1 119 31.8 82.5 76 210 146 35.1 5.31
    TY025053 1-3/8 13-1/2 57 38.1 133 35.1 92 84 233 162 38.1 7.18
    TY025054 1-1/2 17 60.5 41.4 146 38.1 98.5 92 254 175 41.1 9.43
    TY025055 1-3/4 25 73 51 178 44.5 127 106 313 225 57 15.4
    TY025056 2 35 82.5 57 197 51 146 122 348 253 61 23.7
    TY025057 2-1/2 55 44.6 105 70 267 66.5 184 145 453 327 44.61
    TY025058 3 85 127 82.5 330 76 200 165 546 365 92 70
